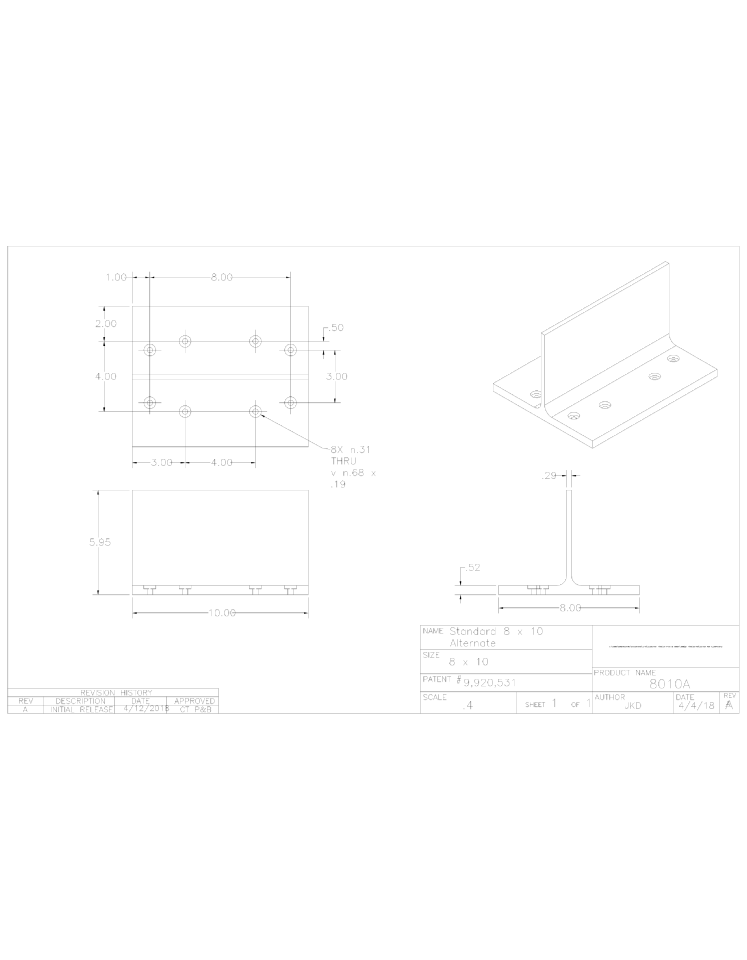

8010A Rev A DXF

8010A Rev A DXF, updated 12/1/18, 7:35 PM

collectionsDXF Files

Downloadable DXF files for our standard products. If you have a custom request, please feel free to contact us directly.

About Connext Post and Beam

Post and beam construction without metal plates and brackets.

Welcome to the same family business that's developed an innovative framing system to greatly simplify post and beam construction. We've created a revolutionary type of connector that can go in any direction:  vertically, horizontally and even diagonally!

Our aluminum T-REX Connectors are patented and structurally-approved so architects can add them confidently for either an old-school or a minimalist, modern look.  And contractors and experienced DIY-ers can now frame easily with post and beam, preserving the natural, clean beauty of wood.

The possibilities go beyond single beam to beam connection, as our 3-way connectors can tie huge beams together above in a long span or a truss can be designed with our minimal metal connectors.  The 4-way connectors we now offer solve the issue of multiple connections. Even post to base is now a breeze with our rust-resistant  connectors.  Our products are easy and uncomplicated, saving you time and money while providing the highest quality in construction and customer service.

document preview
